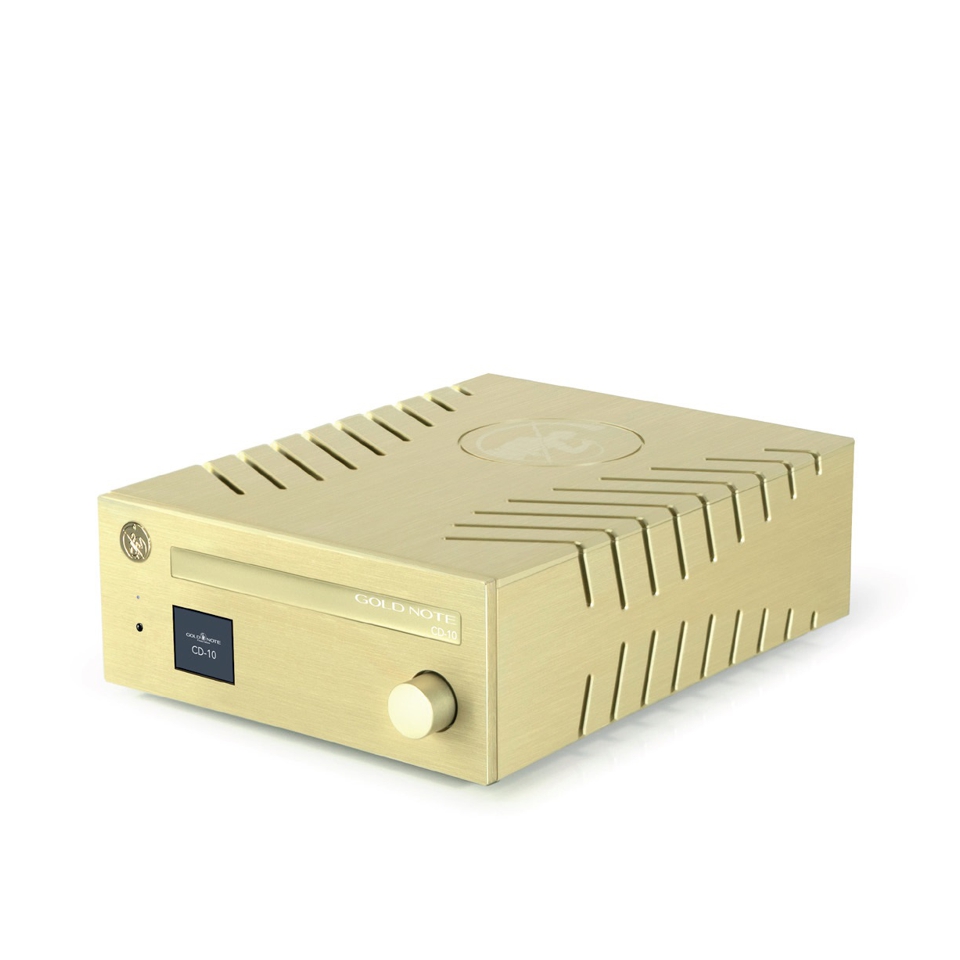

GOLD NOTE CD-10 : High-End CD Player
GOLD NOTE’s new integrated CD player is a High-End digital source designed to extract more pleasure out of your CDs.
Featuring a precision CD mechanism and high-resolution DAC, it can extract every bit of information from the disc to accurately convert the digital audio into an analogue signal. Both the mechanical chassis and the circuit have been designed to achieve the highest sound quality, eliminating noise and intermodulation.
The CD-10 is easy to install and use, thanks to the touchscreen display and multifunction remote control (included), and will become the reference digital source for CD enthusiasts.
GOLD NOTE CD-10 : High-End CD Player
THE CONTEMPORARY HIGH-END CD PLAYER
GOLD NOTE’s new integrated CD player is a High-End digital source designed to extract more pleasure out of your CDs.
Featuring a precision CD mechanism and high-resolution DAC, it can extract every bit of information from the disc to accurately convert the digital audio into an analogue signal. Both the mechanical chassis and the circuit have been designed to achieve the highest sound quality, eliminating noise and intermodulation.
The CD-10 is easy to install and use, thanks to the touchscreen display and multifunction remote control (included), and will become the reference digital source for CD enthusiasts.
UPGRADES
The CD-10 can be equipped with the dedicated PSU-10 EVO external power supply to further enhance the purity of the analogue audio signal path.
TECHNICAL SPECIFICATIONS
CD-PLAYER
CD transport with integrated D/A converter
DAC
AKM AK4493: 32bit/384kHz DAC
FREQUENCY RESPONSE
20Hz-20kHz @ +/-0.3dB
THD – TOTAL HARMONIC DISTORTION
0.001% max
SIGNAL TO NOISE RATIO
128dB
DYNAMIC RESPONSE
127dB
DISPLAY
TFT color display with touchscreen interface
SPEED FLUCTUATION
0.0001%
FORMATS
CD formats: Red Book
Disc compatibility: CD, CD-R, CD-RW, MP3, WMA
REMOTE CONTROL
Multifunctional remote included
DIGITAL INPUTS
1x RCA S/PDIF coaxial
1x TOS asynchronous 32bit/384kHz
ANALOGUE OUTPUTS
1x unbalanced RCA
1x balanced XLR
DIGITAL OUTPUTS
1x S/PDIF Coax 75Ω
1x Optical TOS
OUTPUT IMPEDANCE
50Ω
LINE OUTPUT LEVEL
RCA @ 2Vrms
XLR @ 2Vrms
POWER CONSUMPTION
30W
POWER SUPPLY
100-120V or 220-240V, 50/60H
Dual-Mono power supply
FUSE (220/240V)
1A F
FUSE (100/120V)
2A F
EXTERNAL POWER SUPPLY
PSU-10 EVO
DIMENSIONS
200mm W | 80mm H | 260mm D
WEIGHT
Kg. 3 – net
Kg. 4 – boxed
BLACK
Black anodised aluminium with a traditional brushed finish
SILVER
Silver anodised aluminium with a traditional brushed finish
GOLD
Gold anodised aluminium with a traditional brushed finish
