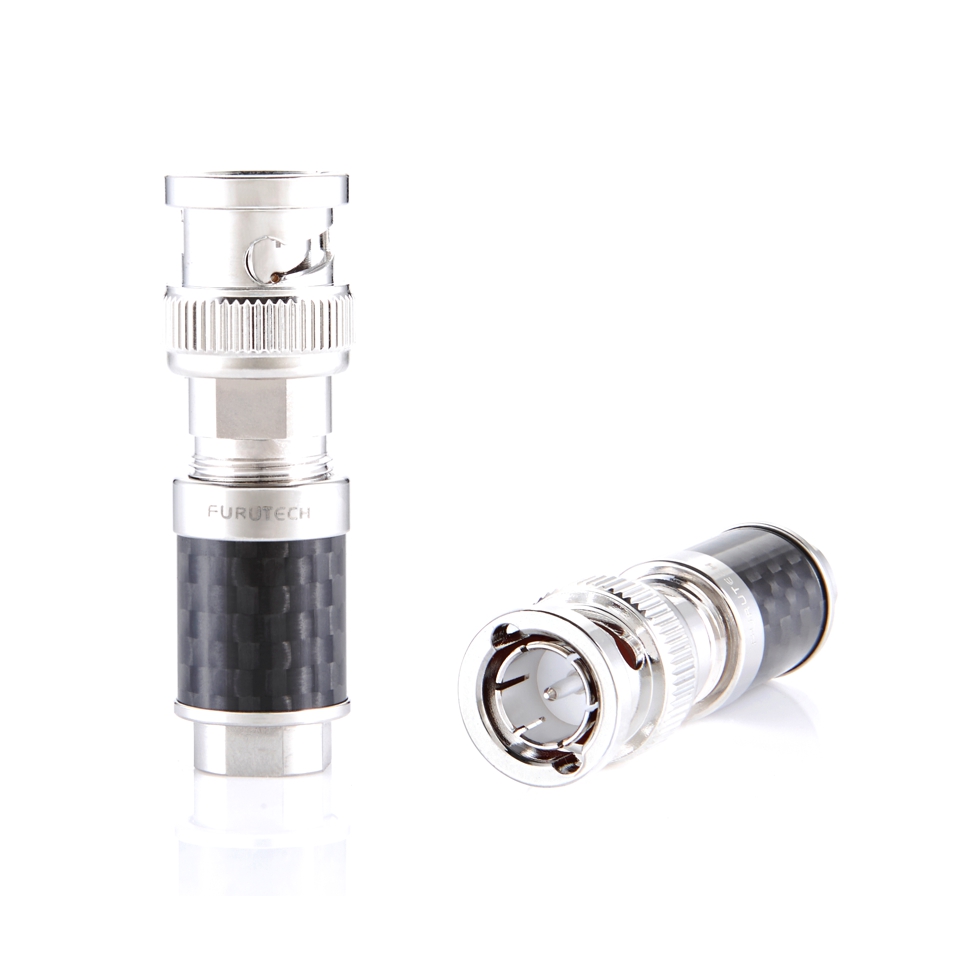

Furutech CF-BNC(R) : High-end performance carbon fibre BNC connector

A solid contact connection is critically important in an audio system.

Furutech’s precision engineered audio grade CF-BNC(R) carbon fibre BNC connector is made from some of the finest materials in the industry today.



Share

Furutech CF-BNC(R) : High-end performance carbon fibre BNC connector

Items Codes:
– CF-BNC(R): Rhodium-Plated

Features:

A solid contact connection is critically important in an audio system. Furutech’s precision engineered audio grade CF-BNC(R) carbon fibre BNC connector is made from some of the finest materials in the industry today.

Furutech is known the world over for a huge variety of top-quality audio accessories that delivers consistently superior results by following Pure Transmission principles; i.e. examining every link in the power and signal path and ultimately optimizing each and every element.

Meticulous build quality is a large part of the engineering equation. Furutech Pure Transmission technology turns a macro lens on every element of power and signal transfer applying optimized engineering solutions to well-known problems such as contact resistance, EMI and RFI rejection, grounding, and using the best materials and processes available.

The CF-BNC(R) features an α (Alpha) phosphor bronze conductor and Fluoropolymer PTFE insulation for minimal impedance and a nonmagnetic stainless and carbon fiber finished housing for superior damping.

All metal parts treated with Furutech’s Two Step Cryogenic and Demagnetizing Alpha Process

Specifications

Main conductor: Nonmagnetic Rhodium-plated α (Alpha) Phosphor bronze conductor

• Insulation with Fluoropolymer PTFE Resin

Housing: Nonmagnetic stainless and carbon fiber finished.

Cable Clamp: Copper Alloy.

• Specified for wire outer diameters up to 8.0mm

Connections: Soldered

Dimensions: Housing: 13.4ψ x 22 mm overall length

Total overall length: 43.9 mm approx

Downloads

Product brochure
